ABOUT
BEHCAR company with 20 years of experience
Whey less Cheese Fill & Seal Machine
All units of the machine are under control of PLC & HMI system.
Equipped with:
-
Cup dispenser
-
Cup controlling system
-
Anti-stick spray to prevent sticking cheese to cup
-
Filling and mixing system of milk and remet with piston
-
System by two servo motor and control the volume of each by HMI system
-
Anti-foam spray
-
Soil dispenser and control system
-
Sealing system
-
Hepa filter unit to make positive pressure inside of the cabin
-
CIP system

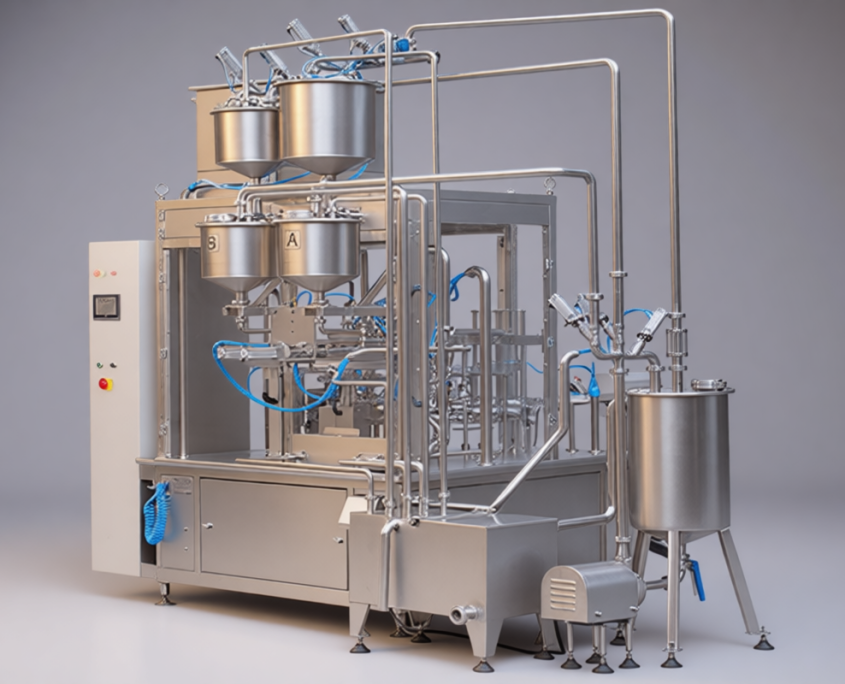

Whey less Cheese Fill & Seal Machine
Automated Production of Wheyless Cheese with Dual Servo Dosing
This is a specialized, fully automatic solution for filling and sealing Wheyless cheese into preformed cups. The advanced design ensures that all machine functions and controls are managed by sophisticated PLC & HMI systems, guaranteeing the highest level of precision, control, and hygiene in the final product.
Key Features and Equipment
The machine is equipped with the following technical systems and features
Control System: All units of the machine are under the control of the PLC & HMI system.
Specialized Filling System: Features a piston filling and mixing system for milk and rennet using two separate servo motors. This allows for the individual dosing volume of each component (milk and rennet) to be set via the HMI system.
Product Quality: Equipped with an Anti-foam spray system to defoam the product surface.
Waste Prevention & Anti-Adhesion:
Anti-stick spray system to prevent the cheese from adhering to the cup.
Cup controlling system: ensures that empty stations (where no cup is present) pass without processing, resulting in zero product waste.
Hygiene and Isolation:
HEPA filter unit with UV radiation to create positive pressure inside the cabin.
Integrated CIP system for automated cleaning.
Construction Material: The machine is built with Full Stainless steel.
Supporting Systems: Includes a cup dispenser , foil dispenser and control system with notification for missing foil , and a reliable sealing system.
| Specification | Technical Details |
|---|---|
| Body Material | Stainless Steel |
| Electrical Supply | 380 VAC |
| Power Consumption | 10Kw |
| Capacity | 2500/h |
| Dimension (L x W x H) | L335-W225-H295 cm |
| Air Pressure | 8 Bar |
| Air Consumption | 1200 L/min |
| Cup Size | 130 x 90 |
