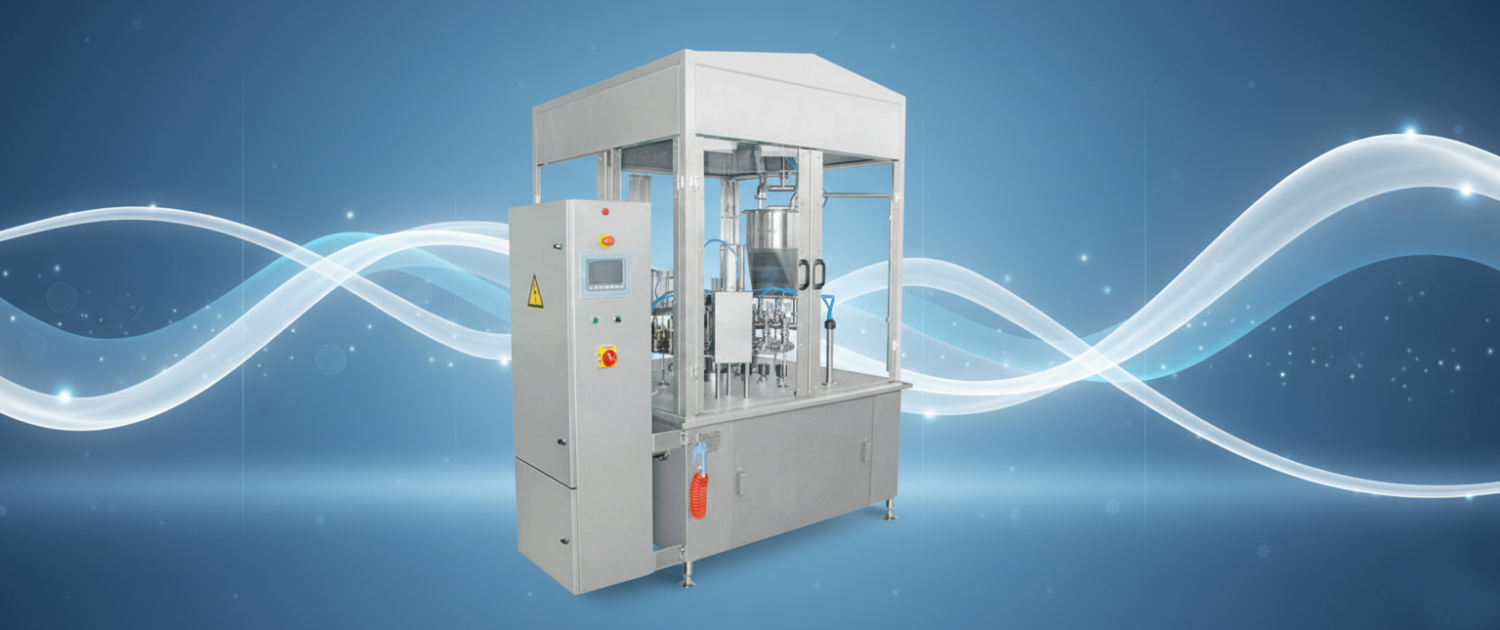

Rotary cup fill & seal machine
Rotary cup fill & seal machine
Equipped with:
-
PLC & HMI system for controlling the machine
-
Automatic cup dispense system
-
Cup controlling system
-
Piston filler system by servo motor and controlling the filler volume by HMI
-
Foil dispenser and seal system
-
Fault detecting system
-
Automatic CIP system
The Rotary Cup Fill & Seal machine is an ideal, high-quality solution for filling and packaging a wide range of dairy and food products. These machines ensure high productivity and consistent final product quality through precise engineering. They are suitable for filling and packaging milk, doogh, all kinds of yogurts, cheese, and similar products.
Key Features and Standard Equipment
This machine is equipped in all its models (2, 3, and 4 nozzles) with advanced systems that provide complete control over the process and optimal performance:
PLC & HMI System: For controlling the machine’s operation process.
Piston Filler System: Driven by a Servo Motor, allowing precise filler volume control via HMI.
Automatic Cup Dispense System.
Foil Dispenser and Seal System.
Cup Controlling System.
Automatic CIP System (Clean-In-Place).
Fault Detecting System.
Material: Full Stainless Steel construction.
| MODEL | 2-Nozzle | 3-Nozzle | 4-Nozzle |
|---|---|---|---|
| Body Material | Stainless Steel | Stainless Steel | Stainless Steel |
| Electrical Supply | 3 Phase – 380 VAC | 3 Phase – 380 VAC | 3 Phase – 380 VAC |
| Power Consumption | 8 kw | 8 kw | 8 kw |
| Dimension (cm) | L160-W210-H290 | L160-W210-H290 | L160-W210-H290 |
| Capacity | 300 L/hr | 500 L/hr | 1000 L/hr |
| Air Pressure | 6 Bar | 8 Bar | 8 Bar |
| Air Consumption | 900 L/min | 1000 L/min | 1300 L/min |
| Capacity (Piston) | 3000 | 4500 | 6000 |
| Cup Sizes (mm) | 70-95-125-145-155-90-130-75 | 95-125-116 | 70-75-95 |
