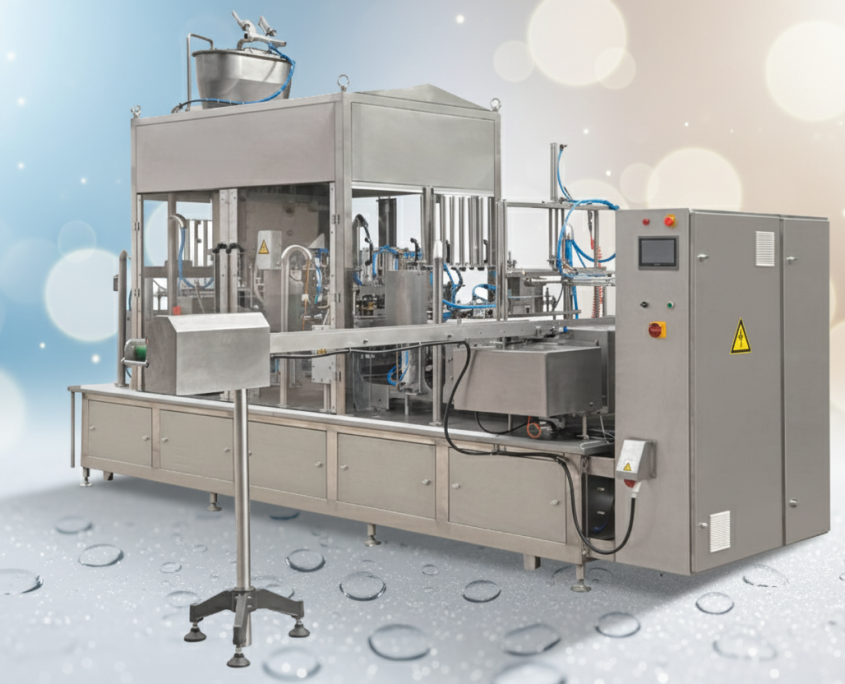

LINEAR CUP FILL AND SEAL MACHINE

  • Suitable for milk, doogh, all kind of yogurts, Cheese and …
  • Equipped with:
  • PLC & HMI system for controlling the machine
  • Automatic cup dispense system
  • Cup controlling system
  • Piston filler system by servo motor and controlling the filler volume by HMI
  • Foil dispenser and seal system
  • Fault detecting system
  • Automatic CIP system

Product Description: This fully automatic linear filling machine features powerful piston nozzles, designed for packaging various dairy and food products in cups. The implementation of a Servo Motor drive system ensures high filling accuracy and volume control.It is manufactured in 6-nozzle and 4-nozzle models.

Key Features

Suitable Products: Milk, Doogh (Ayran), Yoghurt, Cheese, Cream, etc

Control System: Equipped with PLC and HMI (Touch Screen) for easy process monitoring

Systems: Automatic cup dispenser, cup detection sensor, foil dispenser, heat sealing, and fault detection system

Hygiene: Features an automatic CIP (Cleaning-In-Place) system and positive pressure HEPA filters to isolate the cabin, ensuring a sterile packaging environment

Full stainless steel body, resistant to corrosion

MODEL4-NOZZLE6-NOZZLE
Body Material Stainless Steel Stainless Steel
Electrical Supply3 Phase – 380 VAC3 Phase – 380 VAC
Power Consumption10 Kw12 Kw
Capacity~ 5000 – 6000 (Depending on cup size 95/125mm or Rectangular)~ 8500 – 9000 (Depending on cup size 75/95mm)
Dimensions (L x W x H)400 x 160 x 290 cm400 x 160 x 290 cm
Air Pressure8 Bar8 Bar
Air Consumption1450 L/min1600 L/min

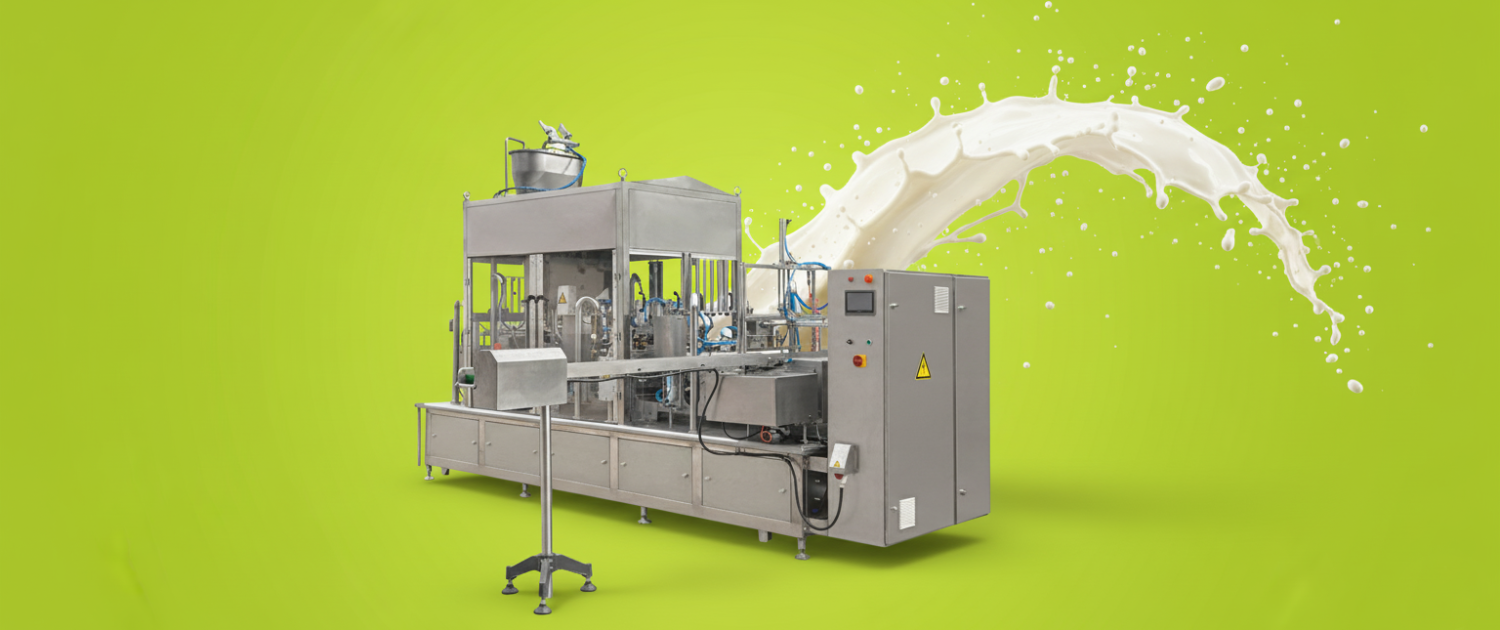

Linear Cup Fill & Seal Machine

General Introduction

Linear Cup Fill & Seal Machines offer an industrial, high-efficiency solution for packaging dairy and food products in cups. Designed for filling and packaging milk, doogh (yogurt drink), various types of yogurt, cheese, and similar products, these machines deliver high speed and precision in the production line thanks to their linear structure.

Key Features and Standard Equipment (Common to all Models)

All linear models are equipped with advanced systems ensuring full process control and high packaging quality:

Intelligent Control System: Equipped with PLC and HMI for complete and easy control of machine operations.

Precise Filling System: Piston filler system driven by a Servo Motor, allowing precise control of the filler volume via the HMI panel.

Automated Systems:

Automatic cup dispense system.

Foil dispenser and seal system.

Control and Monitoring Systems:

Cup controlling system.

Fault detecting system for easy troubleshooting.

Hygienic System:

Automatic CIP System (Clean-In-Place) for washing product pathways.

Equipped with a positive pressure HEPA filter system to isolate the packaging cabin environment.

Material: Full Stainless Steel construction.

Technical Specifications and Model Comparison

This machine is manufactured in two main models: 6-Nozzle and 4-Nozzle. Their specifications are compared below:

MODEL6-Nozzle Model4-Nozzle Model
Body Material Stainless Steel Stainless Steel
Electrical Supply3 Ph-380 VAC3 Ph-380 VAC
Power Consumption12 Kw10 Kw
Capacity8500 – 9000 cups/h5000 – 6000 cups/h
Cup Size (mm)75, 95 95, 125, 130×90
Dimensions (cm)L400-W160-H290L400-W160-H290
Air Consumption1600 L/min1450 L/min
Air Pressure8 Bar8 Bar
