• LINEAR FILLING AND PACKING

LINEAR MACHINE

  • Equipped with intelligent control system

  • The ability to adjust the height of the glass automatically from HMI

  • Glass control system with UV for glass sterilization

  • Thick and thin filling system for all kinds of products with head and motor ability to control from HMI

  • Folling can be done mechanically and by motor, and if there is no foil, foiling on the glass should be done automatically.

  • Equipped with travel to install jet print to insert the date

  • Equipped with a robot to transfer the glass into the carton

  • It has a conveyor system to transfer the carton under the belt to take out the packed glasses

  • It has a positive pressure HEPA filter system to isolate the inside of the packaging cable

  • Equipped with automatic CIP

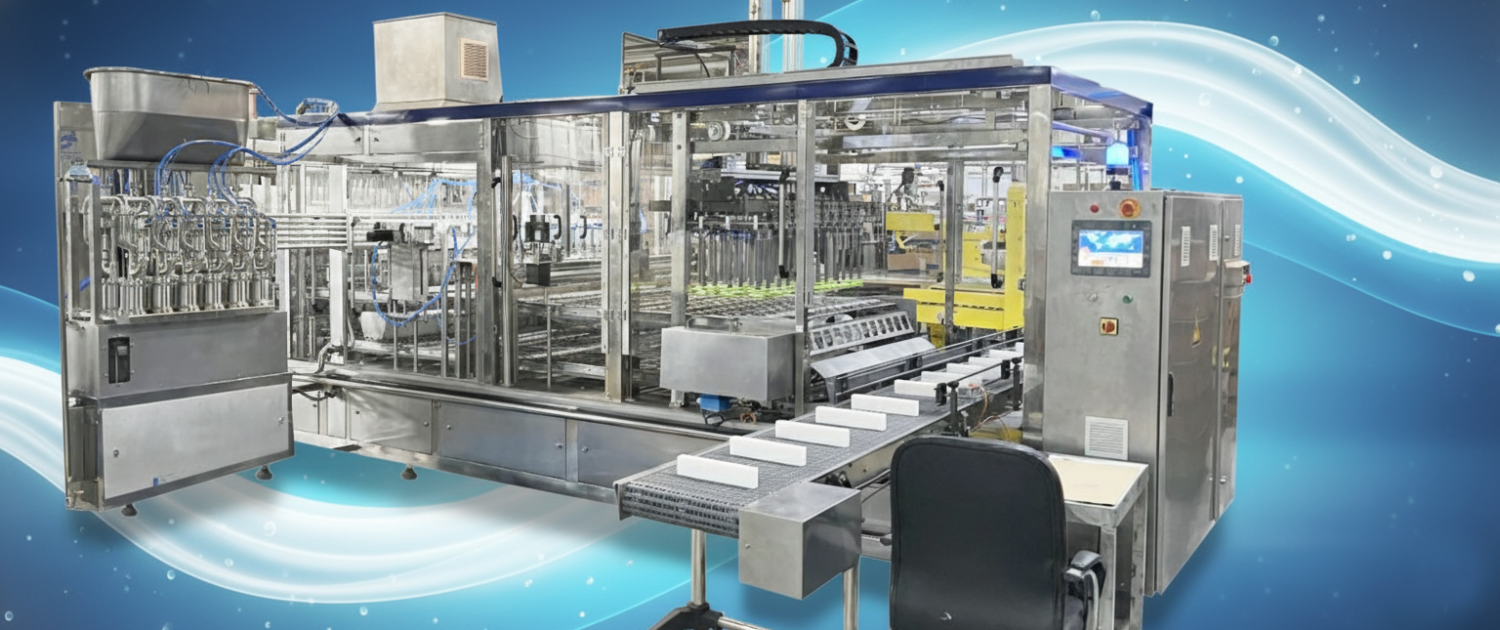

Fully Automatic Linear 12-Nozzle Machine (Robotic)

General Introduction

The Fully Automatic Linear 12-Nozzle Machine is a high-capacity, intelligent production and packaging line. It is designed for filling various products (both high and low viscosity) into cups and final packaging into cartons. A distinguishing feature of this machine is its Robotic System, which precisely and quickly transfers filled cups into cartons.

Key Features and Standard Equipment

This industrial line is equipped with the most advanced control and hygiene technologies:

Intelligent Control System: For complete management of the production line.

Robotic Packer: Equipped with a robot to transfer cups into the carton.

Servo Motor Filling System: Suitable for thick and thin products with high precision and control via HMI.

Automatic Height Adjustment: Ability to adjust cup height automatically via the HMI panel.

Hygiene and Sterilization System:

UV system for cup sterilization.

Positive pressure HEPA filter system to isolate the packaging cabin environment.

Automatic CIP system (Clean-In-Place).

Foiling and Sealing System: Mechanical and motorized operation with automatic foil detection.

Auxiliary Equipment:

Equipped with a travel mechanism to install a jet printer for date coding.

Conveyor system to transfer cartons under the robot for final output.

Cup control system.

Technical SpecificationValue
Body Material Stainless Steel
Electrical Supply3 Ph – 380 VAC
Power Consumption50Kw
Capacity16,000−18,000 Pack/h
Dimension (cm)L600 x W550 x H300
Air Pressure8 Bar
Air Consumption12,000 L/min
Cup Size75−95 mm
