Gallon fill & seal machine
Gallon fill & seal machine
Suitable for all kind of yogurts
Equipped with
● PLC & HMI system for controlling the machine
● Gallon inside rinse system
● Gallon UV system
● Piston filler system by servo motor and controlling the filler volume by HMI
● Foil dispenser, sealing and cap applying system
● Fault detecting system
● Automatic CIP system
General Introduction

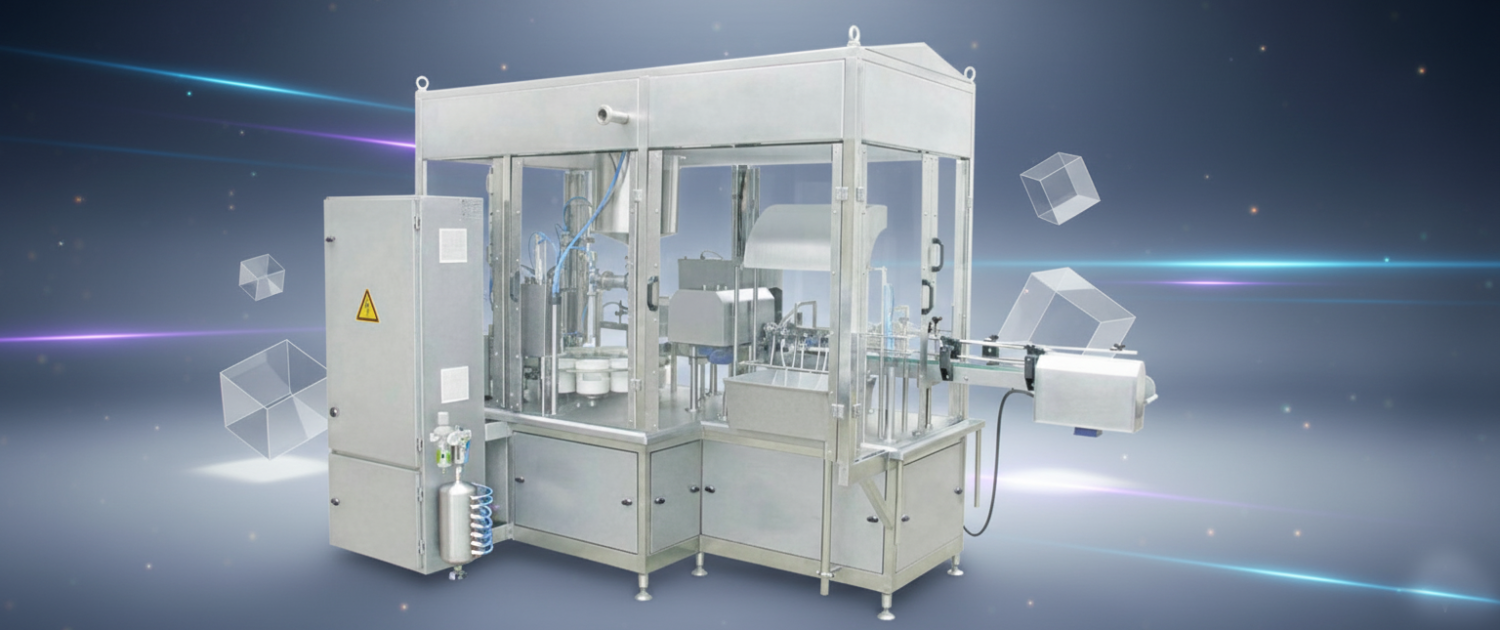

The Two-Nozzle Gallon Fill & Seal machine is a powerful solution for filling and packaging large-volume dairy products. This machine is designed for filling and packaging all kinds of yogurts, stirred yogurt, plain yogurt, shallot yogurt (mousir), and similar products into gallon containers, ensuring speed, accuracy, and high hygiene standards in the production line.
Key Features and Standard Equipment
This machine is supplied with advanced equipment that provides complete process control and the highest hygiene standard:
PLC & HMI System: For complete control of the machine’s operation process.
Piston Filler System: Driven by a Servo Motor, allowing precise control of the filler volume via HMI.
Foil Dispenser, Sealing, and Cap Applying System.
Gallon Inside Rinse System.
Gallon UV System.
Fault Detecting System.
Automatic CIP System (Clean-In-Place).
Material: Full Stainless Steel construction
Technical Specifications of the Two-Nozzle Gallon Fill & Seal Machine
| Body Material | Stainless Steel |
| Electrical Supply | 380 VAC |
| Power Consumption | 8 Kw |
| Capacity | 1300 Pack/h |
| Dimension (cm) | L350-W180-H250 |
| Air Pressure | 8 Bar |
| Air Consumption | 1600 L/min |
| Packages Size | 1.5~2.5 kg |
