FORM-FILL-SEAL

Form Fill Seal Machine
Suitable for packaging of butter, cheese, jam, honey, chocolate dessert, etc.
Advanced Production of Small Portion Cups – Without Waste

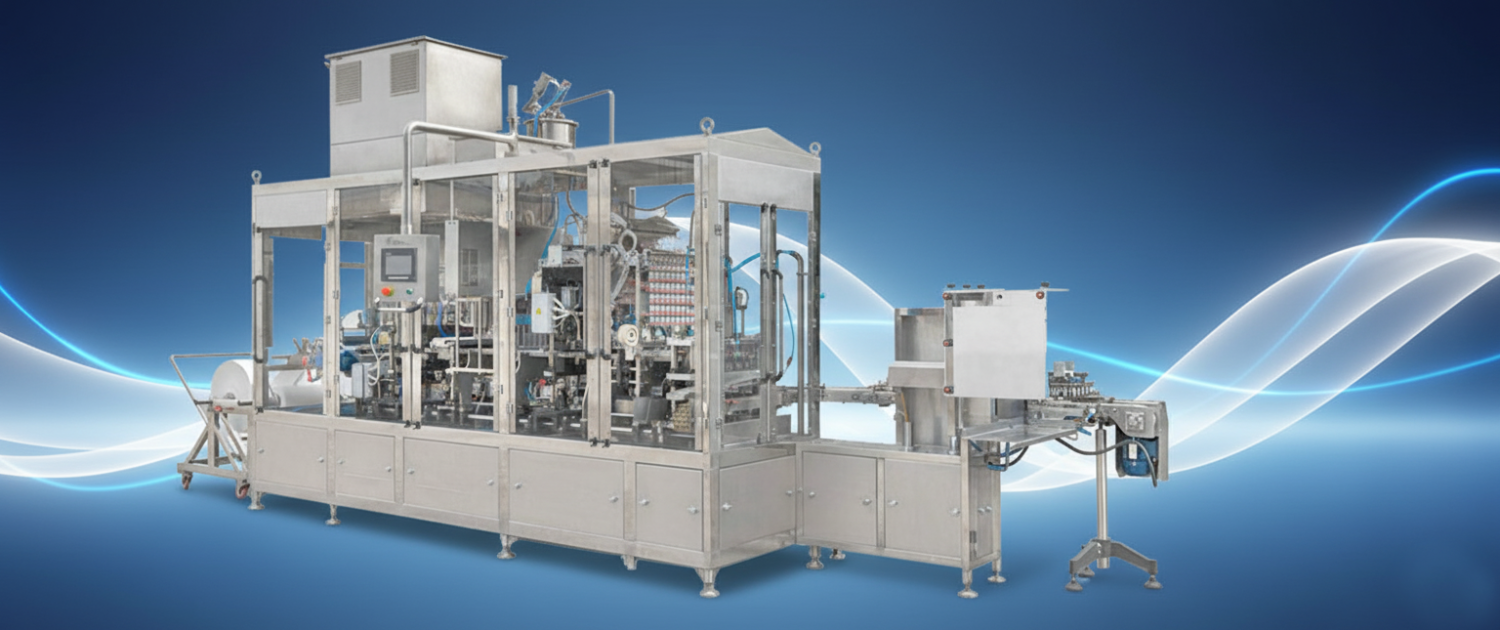

This machine represents a comprehensive automatic solution for producing Small Portion Cups and single-serve packages. Engineered for efficiency, the machine operates completely Without Waste, significantly reducing material costs. It is perfectly suited for the dairy and food industries, ensuring high hygiene standards.
Suitable Applications
The machine is versatile and suitable for packaging various products, including:
Dairy: Butter, cheese (cream, process, wheyless, etc.), yogurt.
Desserts & Spreads: Jam, honey, chocolate dessert.
Liquids: Water and other beverages.
Key Features & Technical Advantages
Zero Waste Technology: Due to the Servo Motor-driven chain pulling system throughout the film sides, there is absolutely no waste at the beginning and end of the film.
High Precision Filling: Features a piston filling system driven by a Servo Motor, ensuring minimum volume tolerance.
Advanced CIP System: Equipped with an automatic Filling CIP System that requires no disassembling of nozzle parts or pulling out of the film.
Hygiene & Sterilization:
UV radiation for both cup-forming film and foil.
HEPA filter system with UV radiation to supply clean air pressure and isolate the cabin.
Robust Construction: The chassis and all parts in contact with the product are made of Stainless Steel. All aluminum parts are hard anodized, and steel parts are hard chrome coated.
Smart Control: Powered by European brand control systems, offering easy troubleshooting by monitoring all alarms and errors via the HMI.
Packaging Flexibility:
Capable of selecting between single or perforated punching of cups.
Changing of production and expiry dates at the bottom of cups without mold disassembling.
Optional Features:
Capable of integrating a Shrink Sleeve Label Station before punching.
Capable of integrating a cups’ cartoning system at the end of the line.
Capable of creating embossed decor on the cup walls.
| MODEL | Small Portion Cups Production | Single or Perforated Cups Production |
|---|---|---|
| Body Material | Stainless Steel | Stainless Steel |
| Electrical Supply | 380 VAC | 380 VAC |
| Capacity | up 35 cycle/min | up 24 cycle/min |
| Dimension (m) | 6 (L) – 2.5 (W) – 3.5 (H) | 9 (L) – 3 (W) – 3.5 (H) |
| Air Pressure | 8 bar | 8 bar |
